TURBIDITY SENSOR
Tethys Turbidity probes are based on Nephelometric Method (ISO 7027 – EN 27027). A light beam is sent to the sample through an optical lens. The 90 degree scattered light by suspended particle is collected by the probe through a second lens and it is converted in an electric signal proportional to the turbidity of the sample.
The probe uses an infrared light and the measuring is not affected by the color of the sample. They are suitable for measurement of turbidity in water quality monitoring, municipal and industrial water treatment and Aquaculture.
The probe uses an infrared light and the measuring is not affected by the color of the sample. They are suitable for measurement of turbidity in water quality monitoring, municipal and industrial water treatment and Aquaculture.
Application
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
SPECIFICATIONS

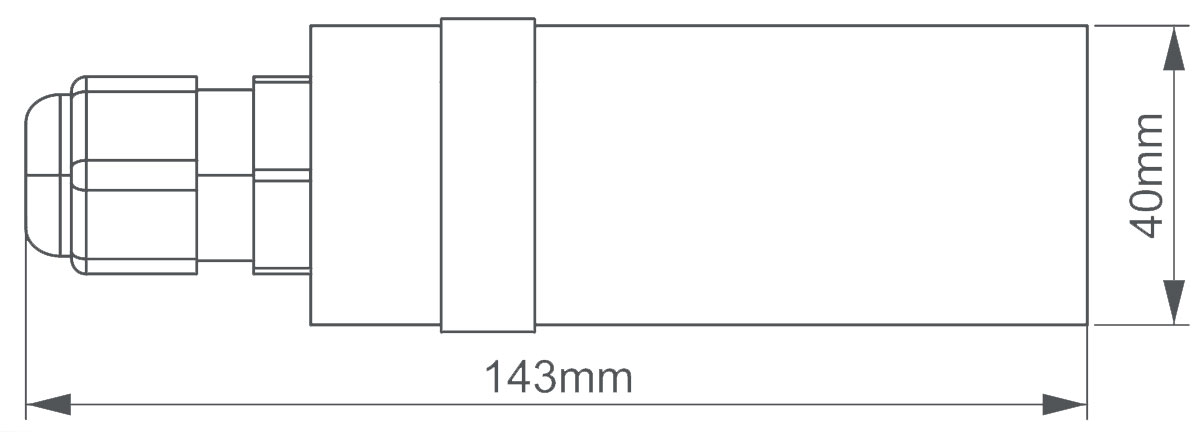

| Dimension Drawing | Measurement Range | 0 – 4.000 NTU, 0 – 40.00 NTU, 0 – 400.0 NTU |
|
Measurement Technique | Nephelometric |
| Detector | 90° scattered light detector | |
| Light Source | Infrared | |
| Ambient Temperature Range | -5 to 50 °C | |
| Working Pressure | 6 bar maximum at 25 °C | |
| Body material | PVC | |
| Integral Sensor Cable Length | 10 meter | |
| Mounting | In-line or In-flow | |
| Probe warranty | 1 Year |
Reference Part
| EXT-TURBNEPH-H | Nephelometric turbidity probes high range Range: 0 – 400 NTU 10 meters cable |
| EXT-TURBNEPH-M | Nephelometric turbidity probes medium range Range: 0 – 40 NTU 10 meters cable |
| EXT-TURBNEPH-L | Nephelometric turbidity probes low range Range: 0 – 4 NTU 10 meters cable |
Tethys Turbidity probes are based on Nephelometric Method (ISO 7027 – EN 27027). A light beam is sent to the sample through an optical lens. The 90 degree scattered light by suspended particle is collected by the probe through a second lens and it is converted in an electric signal proportional to the turbidity of the sample.
The probe uses an infrared light and the measuring is not affected by the color of the sample. They are suitable for measurement of turbidity in water quality monitoring, municipal and industrial water treatment and Aquaculture.
The probe uses an infrared light and the measuring is not affected by the color of the sample. They are suitable for measurement of turbidity in water quality monitoring, municipal and industrial water treatment and Aquaculture.
Application
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
Download Turbidity Sensor Probe
| Description | Type | Language | Size | Download |
|---|---|---|---|---|
| Turbidity Sensor Probe | English | 253 KB |
|
|
| Brochure For All Probes | English | 8837 KB |
|
