ORP SENSOR
Tethys General Purpose ORP Sensor with ¾”NPT thread on both front & back is a heavy-duty ORP probe with Ryton body suitable for many industrial water applications. Mounting thread on both front and back allow for in-pipe (continuous measurement) or submersible installations of ORP Sensor. This ORP sensor offers excellent chemical and impact resistance.
Application
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
SPECIFICATIONS

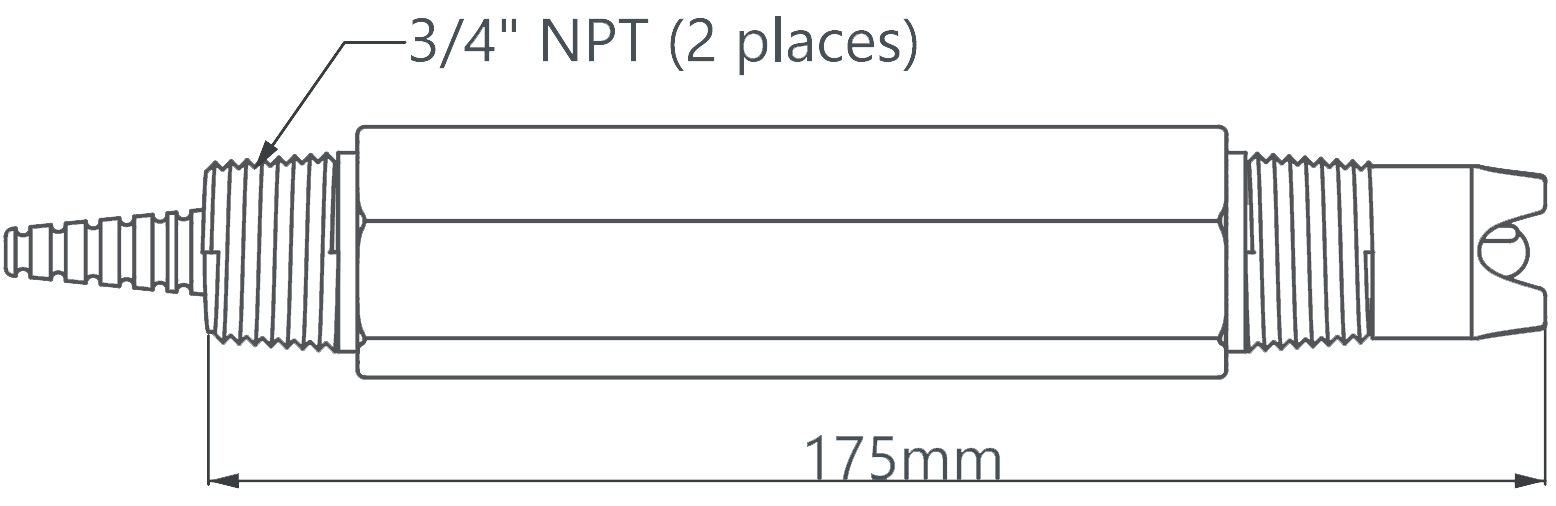

| Dimension Drawing | ORP Range | -2000 to +2000 mV |
|
Sensor Type | Convertible style combination ORP sensor |
| Body Material | Ryton | |
| Sensing element | Platinum | |
| Reference | Double Junction with porous Teflon | |
| Mounting | Immersion or In-Line | |
| Operating temperature Range | 0-80 °C | |
| Maximum operating pressure | 100 psi | |
| Integral Sensor Cable Length | 6 meter | |
| Mounting Thread on Sensor Body | ¾” NPT threads, front & back |
Reference Part
| ELORP | ORP online electrode Range: -2000 mV – +2000 mV 6 meters of cable |
Tethys General Purpose ORP Sensor with ¾”NPT thread on both front & back is a heavy-duty ORP probe with Ryton body suitable for many industrial water applications. Mounting thread on both front and back allow for in-pipe (continuous measurement) or submersible installations of ORP Sensor. This ORP sensor offers excellent chemical and impact resistance.
Application
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
