DISSOLVED OXYGEN PROBE


Tethys Process Optical DO Probe is based on proven Luminescent Optical Technology suitable for most industrial application. It provides full featured performance, replaceable sensor caps, and long life. Mounting thread on both front and back allow for in-pipe (continuous measurement) or submersible installations of DO probe. Optical DO probe is suitable for measurement of dissolved oxygen measurement in various water and waste water application.

Application

  • Industrial waste water treatment plant
  • Other process water application
  • Municipal waste water treatment plant
  • Surface water application

SPECIFICATIONS

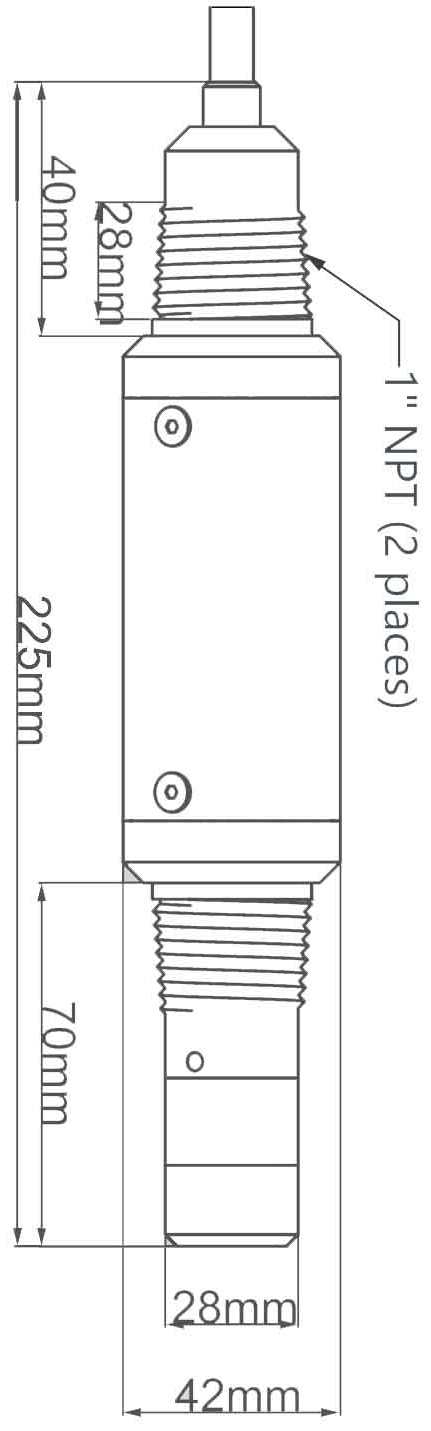

Dimension Drawing Measurement Range DO 0-20 mg/L
Working Temperature Range -5 to 50 °C
Measurement Technique Luminescent Optical Technology
Accuracy DO ± 0.1 mg/L
Accuracy Temperature ± 0.2 °C
Response Time 40 second to 90% (T-90)
Body Material Stainless Steel 316 body
Sensor Protection IP-68
Maximum operating pressure 100 psi
Maximum operating temperature 80 °C
Temperature Compensation In-built, Automatic
Integral Sensor Cable Length 10 meter
Mounting Immersion or In-Line
Mounting Thread on Sensor Body 1” NPT threads, front & back
Sensor Cap Replaceable, Pre-calibrated
Expected Sensor Cap Life 2 Year
Probe Warrantee 1 Year

Reference Part


DO-F Dissolved oxygen probe by fluorescence
Range: 0-25 mg/l O2
10 meters of cable length
DO-F-S Replacement Sensor cap with matched microSD card
DO-F-C Replacement converter box
Tethys Process Optical DO Probe is based on proven Luminescent Optical Technology suitable for most industrial application. It provides full featured performance, replaceable sensor caps, and long life. Mounting thread on both front and back allow for in-pipe (continuous measurement) or submersible installations of DO probe. Optical DO probe is suitable for measurement of dissolved oxygen measurement in various water and waste water application.

Application

  • Industrial waste water treatment plant
  • Other process water application
  • Municipal waste water treatment plant
  • Surface water application
