DISSOLVED OXYGEN PROBE Auto Cleaning


Tethys Process Optical DO Probe is based on proven Fluorescence Optical Technology suitable for most industrial application. It is rugged, without replacement sensor cap and having auto-cleaning feature. It is designed for submersible mounting in open basin. Optical DO probe is suitable for measurement of dissolved oxygen measurement in various water and waste water application.

Application

  • Industrial waste water treatment plant
  • Other process water application
  • Municipal waste water treatment plant
  • Surface water application

SPECIFICATIONS

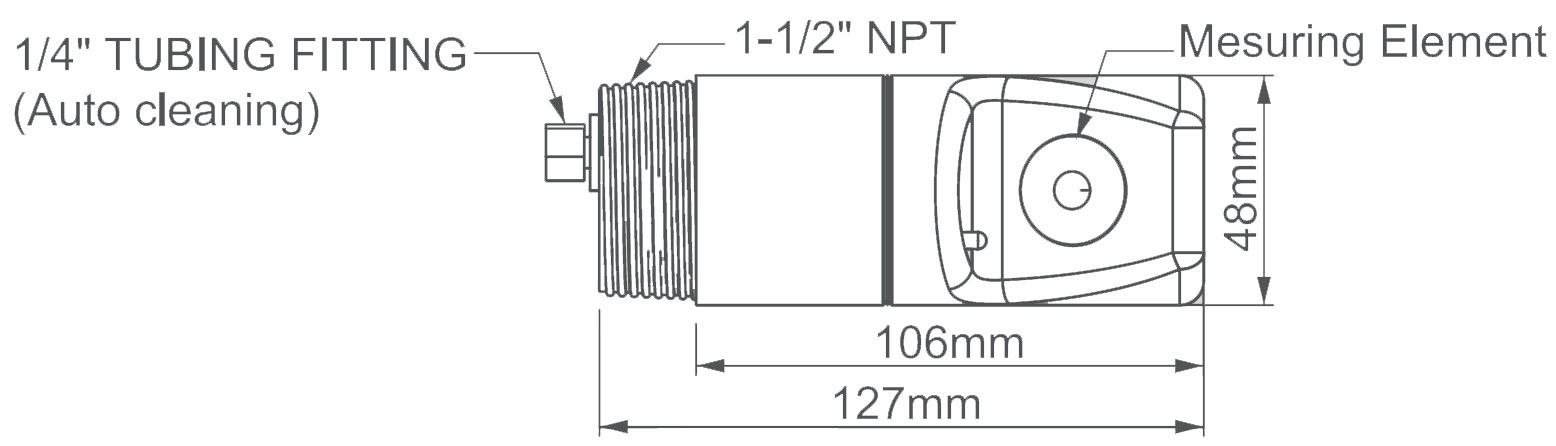

Dimension Drawing Measurement Range 0-25 mg/L
Working Temperature Range 0 to 60 °C
Measurement Technique Fluorescence Optical Technology
Accuracy 1% of reading or 0.05 ppm, whichever is greater
Response Time 60 second to 90% (T-90)
Wetted Material Epoxy, polyurethane and PVC
Sensor Drift Less than 2% per year
Repeatability 0.02 ppm
Stability (per 24 hour period) 0.02 ppm
Maximum Pressure 100 PSI
Temperature Compensation In-built, Automatic
Integral Sensor Cable Length 10 meters
Sensor Cleaning System air or water wash option available
Mounting Submersible
Mounting Thread on Sensor Body 1-1/2” NPT
Probe Warrantee 1 Year

Reference Part


DO-F-AC Dissolved oxygen probe by fluorescence with automatic cleaning
Range: 0-25 mg/l O2
10 meters of cable length
Tethys Process Optical DO Probe is based on proven Fluorescence Optical Technology suitable for most industrial application. It is rugged, without replacement sensor cap and having auto-cleaning feature. It is designed for submersible mounting in open basin. Optical DO probe is suitable for measurement of dissolved oxygen measurement in various water and waste water application.

Application

  • Industrial waste water treatment plant
  • Other process water application
  • Municipal waste water treatment plant
  • Surface water application

Download Dissolved Oxygen Probe Auto Cleaning


Description Type Language Size Download
Dissolved Oxygen Probe Auto Cleaning PDF English 270 KB
Brochure For All Probes PDF English 8837 KB
