CONDUCTIVITY PROBE

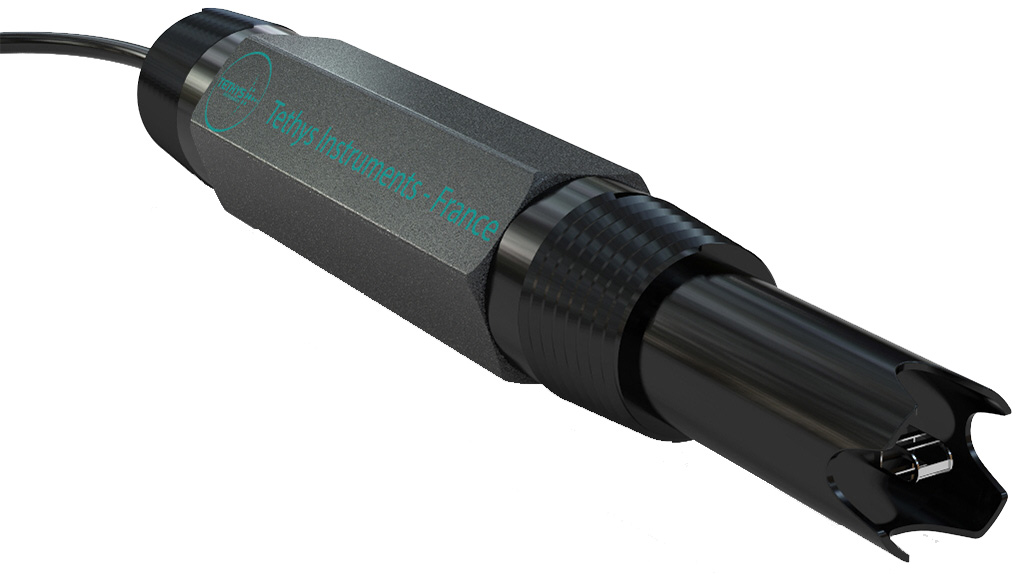

Tethys Conductivity Sensor with ¾”NPT thread is a heavy-duty probe with Polypropylene body suitable for many industrial water application. Mounting thread allow for in-pipe (flow through) installations of conductivity sensor. These conductivity sensor offers excellent chemical and impact resistance.
Application
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
SPECIFICATIONS

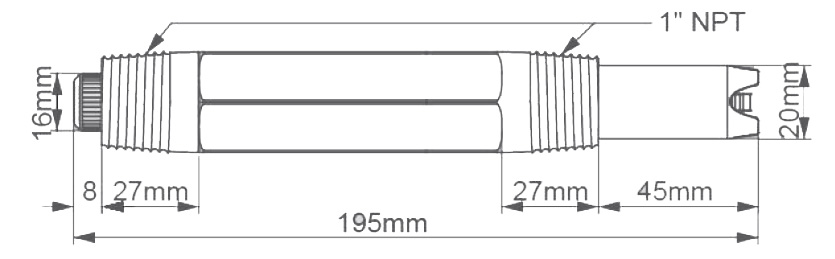

| Body Material | Polypropylene | Dimension Drawing |
| Mounting | In-Line (Flow-through) |
Dimensions and Specifications above apply for
ELCOND-1/ ELCOND-10/ ELCOND-0.1 |
| Temperature Range | 0-80 °C | |
| Maximum operating pressure | 100 psi | |
| Temperature Element | Pt-100 Ohm RTD | |
| Temperature Compensation | Automatic | |
| Integral Sensor Cable Length | 6 meter | |
| Mounting Thread on Sensor Body | ¾” NPT threads |
Reference Part
| Conductivity online electrode - 6 meters cable | |
| ELCOND-1 | Range: 0 – 20 mS Cell constant k=1.0 cm-1 (medium range) Built-in ATC RTD 100 Ohm |
| ELCOND-0.01 | Range: 0 – 200 µS Cell constant k=0.01 cm-1 (very low range) Built-in ATC RTD 100 Ohm |
| ELCOND-0.1 | Range: 0 – 2000 µS
Cell constant k=0.1 cm-1 (low range) Built-in ATC RTD 100 Ohm |
| ELCOND-10 | Range: 0 – 200 mS
Cell constant k=10.0 cm-1 (high range) Built-in ATC RTD 100 Ohm |
| ICOND | Inductive conductivity online probe
Range: 0 – 100 mS 3 meters cable Built-in temperature compensation at 2.2%/°C |
Tethys Conductivity Sensor with ¾”NPT thread is a heavy-duty probe with Polypropylene body suitable for many industrial water application. Mounting thread allow for in-pipe (flow through) installations of conductivity sensor. These conductivity sensor offers excellent chemical and impact resistance.
Application
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
